Chassis

Kalì Kart KK2

The body of this model is made of 30mm chrome molybdenum steel tubes and is particularly suitable for direct drive categories, both International (OK – OKJ), and for the main single-brand trophies such as Rotax, Iame X30 and Rok. The design of the body is conventional and among its strong points it has the ease with which it can be combined with all types of tires (option and prime) and the feeling it offers the driver with simple setup adjustments. The accessories are top of the range and include magnesium rims and accessories, VEN 11b braking system and the new 507/509 fairings. By implementing the chassis with the gear lever and clutch kit, the KK2 model can also be used in the KZ categories if a softer and smoother chassis than the usual 32mm is required, useful for example in track conditions with a lot of grip.

Scocca

Technical Data

Category Direct drive
Homologation 002-CH-24
Ø Tubes 30
Wheel Base 1.042
Rear Width 635
Front Width 728
Ø Axle 50

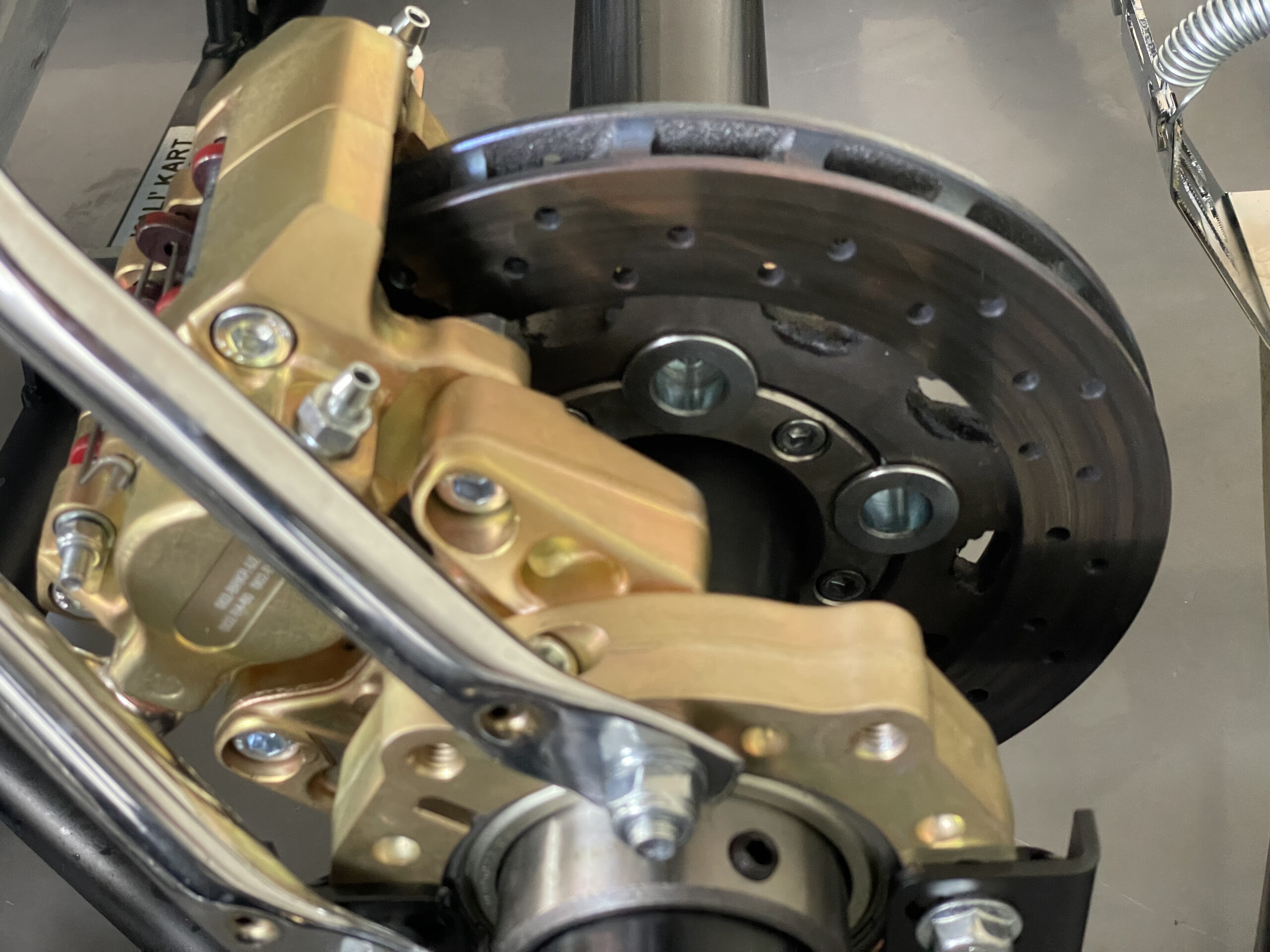

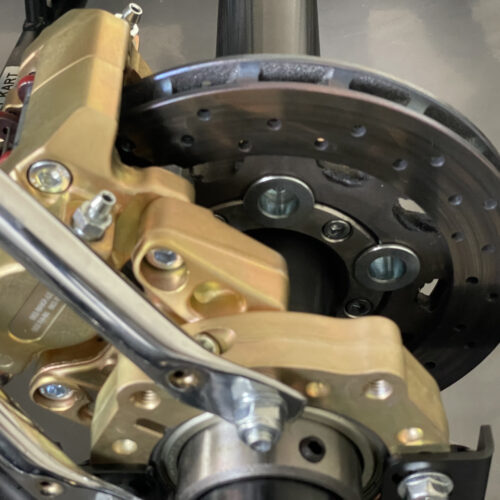

Brake System Hydraulic / Ven 13 DD – VEN 11
Brake Disk Floating
Fuel Tank Capacity 8,5
Steering Wheel Black Orange Ø340
Rear Hubs Magnesium
Seat Resin
Wheels 132/212 Magnesium
